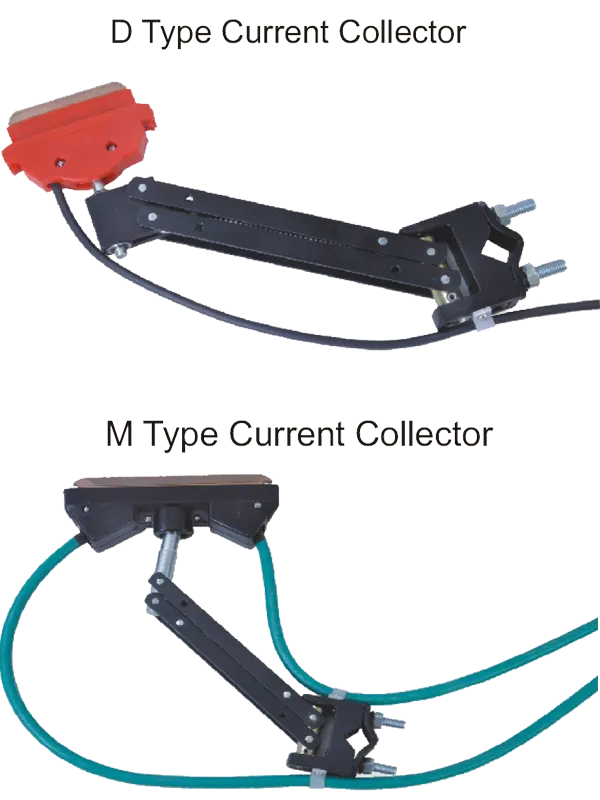

- A current collector, also known as a pantograph, is an essential component of a DSL (Distributed Slip Ring) busbar system. It is used to collect electrical power from the shrouded conductor of the busbar system and transmit it to a fixed or moving device.
- The current collector typically consists of a carriage or trolley that travels along the length of the shrouded conductor. The carriage is fitted with a set of brushes or contacts that make electrical contact with the conductor, enabling power to be transferred to the device. The carriage can be designed to move along the conductor in a straight line, or it can be configured to navigate corners or curves in the busbar system.
- The current collector is designed to maintain a reliable and consistent electrical connection between the shrouded conductor and the device, even as the device moves along the length of the busbar system. It is often used in conjunction with other safety devices, such as limit switches and emergency stops, to ensure the safe and efficient operation of the equipment.
- In summary, the current collector is a crucial component of a DSL busbar system, enabling the safe and efficient transfer of electrical power from the conductor to a fixed or moving device.
-
